What Is a Ballast Water Treatment System (BWTS) and How Does It Work on a Ship?
Quick answer: A ballast water treatment system (BWTS) is equipment fitted to a ship’s ballast line that removes or inactivates organisms in ballast water, so the water discharged meets the IMO D-2 standard. Most systems filter the water as it comes aboard, disinfect it with UV light or an oxidant, then treat it again or neutralise it before it goes overboard. Since 8 September 2024, every ship covered by the Ballast Water Management Convention has to meet D-2.
Every ship that carries ballast water also carries whatever lives in it. Take on water in one port, discharge it in another, and you’ve moved plankton, larvae and bacteria into a new ecosystem. That’s the problem the IMO set out to solve in 2004.
Installing the system was the first job. Running it properly is the harder one. Data that Global TestNet submitted to the IMO in 2024 showed that 29% to 44% of operational systems sampled were failing the D-2 limit for the largest organisms. The main causes were operation and maintenance, not design.
This guide covers what a BWTS is, how it works through a full ballast cycle, the main types, the rules in 2026 and what goes wrong in service. It doesn’t cover choosing a system for a specific vessel: that depends on your pumps, your pump room and your trading pattern.
What is a ballast water treatment system?
A ballast water treatment system is the equipment that cleans ballast water of living organisms before it’s discharged. It sits between the sea chest and the ballast tanks, and treats water on the way in, on the way out, or both.
The IMO’s formal term is ballast water management system, or BWMS. It’s a bit of a mouthful either way, so most crews say BWTS, and we will too. Both terms describe the same equipment.
So who needs one? The IMO Ballast Water Management Convention applies to ships designed to carry ballast water, flying the flag of a party to the Convention and sailing on international voyages. Ships of 400 GT and above also need an International Ballast Water Management Certificate and regular surveys. The system is only one part of compliance: the ship also needs a Ballast Water Management Plan and a record book.
Why ships need one: the D-2 standard
Before treatment systems, ships managed ballast by exchanging it in the open ocean, as far as possible from land and in deep water. That’s the D-1 standard. It reduces the risk, but it depends on weather, route and ship stability, and it doesn’t guarantee a result.
D-2 replaced it with a performance standard: a limit on what the discharged water may contain. Ships moved from D-1 to D-2 at their IOPP renewal surveys from September 2019, and since 8 September 2024 D-2 applies to all ships under the Convention.
| Organism size or type | D-2 limit in discharged ballast water |
|---|---|
| Organisms 50 µm and larger (mostly zooplankton) | Fewer than 10 viable organisms per m³ |
| Organisms from 10 to 50 µm (mostly phytoplankton) | Fewer than 10 viable organisms per ml |
| Toxicogenic Vibrio cholerae | Less than 1 cfu per 100 ml |
| Escherichia coli | Less than 250 cfu per 100 ml |
| Intestinal enterococci | Less than 100 cfu per 100 ml |
Here’s what that means in practice. Ten organisms of the larger class in a cubic metre is ten in a thousand litres of seawater. A filter alone can’t get there, which is why every type-approved system pairs physical separation with a disinfection step.
How a BWTS works on a ship, step by step
That’s the theory. Here’s what happens during a real ballast operation, using a filtration and UV system as the example. Electrochlorination systems follow the same rhythm with different chemistry, and we flag the differences as we go.
1. Ballasting: filter, then treat
The ballast pump draws seawater through the sea chest and into an automatic screen filter, typically with a 40–50 µm mesh. The filter removes larger organisms and most of the sediment. When the pressure difference across the screen rises, the filter backflushes on its own and returns the captured material overboard, back to the water it came from.
The filtered water then passes through the UV reactor. The control system calculates the delivered dose from UV intensity, flow rate and UV transmittance (UVT), which is a fancy way of saying how clear the water is. If the water is murky, the system raises lamp power or cuts the flow. In an electrochlorination system, this is the point where oxidant is generated and dosed instead, controlled by a total residual oxidant (TRO) sensor.
2. The voyage: water in the tanks
Treated water sits in the tanks for days or weeks. Some organisms can survive or regrow in that time, especially in sediment at the bottom of the tank. Chemical and electrochlorination systems often depend on a minimum holding time to work. Under IMO approval, most UV systems don’t, because they treat the water a second time on the way out. US rules are stricter: the USCG sets a minimum holding time for many UV systems, so check your certificate before you deballast in US waters.
3. Deballasting: treat again or neutralise
On a UV system, the filter is bypassed and the water goes through the UV reactor a second time before discharge. On an electrochlorination system, the TRO is measured and a neutralising agent is dosed, so the residual oxidant leaving the ship stays under the discharge limit.
4. After the operation: flush and record
At the end of each operation, many UV systems flush the filter and reactor with fresh water to limit fouling. The control system stores the operating data, and the crew records the operation in the Ballast Water Record Book. That entry matters more than it looks: the record book is one of the most common sources of inspection findings (more on that below).
The main components of a ballast water treatment system
Different makers package them differently, but the building blocks are the same. Here’s what each one does and where it tends to cause trouble.
| Component | What it does | What to watch |
|---|---|---|
| Automatic backflushing filter | Removes organisms and sediment larger than about 50 µm and improves water clarity for the next stage | Clogging in silty ports, damaged screen elements, faulty differential-pressure sensors |
| UV reactor or electrolytic cell | Inactivates the organisms the filter didn’t catch | UV lamp ageing and fouled quartz sleeves; electrode scaling and low salinity on electrochlorination systems |
| Sensors (flow, pressure, UVT or TRO, temperature) | Tell the controller whether the treatment is valid | Calibration drift, which can trigger needless flow reduction or, worse, invalid treatment |
| Control panel and data logger | Runs the sequence, raises alarms and stores operating history | Gaps in logged data when an inspector asks for it |
| Valves, bypass line and sampling points | Route and isolate the water and allow samples to be taken | Leaking or mis-set valves that mix treated and untreated water |
| Neutralisation unit (chemical and electrochlorination systems only) | Removes residual oxidant before discharge | Reagent stock, dosing pump faults |
Types of ballast water treatment systems
Two technologies dominate today’s fleet: UV-based systems and electrochlorination. A smaller group of systems inject a stored chemical, and a handful use deoxygenation or ozone. Nearly all of them filter first.
| Filtration + UV | Electrochlorination | Chemical injection | |
|---|---|---|---|
| How it disinfects | UV-C light damages the DNA of organisms so they can’t reproduce | Oxidant generated on board from seawater | Biocide carried on board and dosed |
| Active substance on board | None | Yes, generated | Yes, stored |
| TRO monitoring and neutralisation | Not needed | Needed | Usually needed |
| Holding time before discharge | Usually not needed under IMO approval (second UV pass); the USCG often sets one | Often needed | Usually needed |
| Water it struggles with | Low-clarity (low-UVT) water forces lower flow | Fresh or low-salinity water may need extra measures | Depends on the chemical |
| Main consumables | UV lamps, quartz sleeves, wiper seals, filter elements | Electrodes, neutralising agent, sensor reagents | Biocide and neutralising agent |
Which is better? It depends on your ballast flow, your spare electrical capacity and the water you ballast in. A large tanker ballasting at high flow faces different trade-offs from a short-sea ship working muddy river ports. Anyone who gives you one answer for every ship is selling something. We compare the options in more detail in [PLACEHOLDER: link to the “Types of BWTS” guide when published].
The rules a BWTS has to meet in 2026
The rules have moved steadily from “install a system” to “prove it works”. Here are the milestones that matter, with the IMO resolutions behind them.
| Date | What changed |
|---|---|
| February 2004 | IMO adopts the Ballast Water Management Convention |
| 8 September 2017 | The Convention enters into force |
| 13 October 2019 | The BWMS Code (MEPC.300(72)) for type approval enters into force |
| 28 October 2020 | Systems installed from this date must be approved under the BWMS Code |
| 1 June 2022 | Commissioning testing becomes mandatory for newly installed systems (MEPC.325(75)) |
| 8 September 2024 | D-2 applies to all ships under the Convention |
| 1 February 2025 | New Ballast Water Record Book format with operation codes A to H (MEPC.369(80)) |
| 1 October 2025 | Electronic record books allowed, subject to approval and a ship-specific declaration (MEPC.383(81)) |
| April–May 2026 | MEPC 84 approves amendments that add biological testing at intermediate and renewal surveys, and adopts revised G4 guidelines for Ballast Water Management Plans |
| 30 November – 3 December 2026 | MEPC 85 expected to adopt the amendments, according to BIMCO |
| Spring 2028 (expected) | Amendments enter into force, according to DNV. The date is set at adoption |
The last three rows are the ones to watch. Once the amendments are in force, surveyors won’t only check certificates and logs: they’ll sample and test the discharge at intermediate and renewal surveys. Current plans stay compliant until then, but it’s worth reviewing yours early.
The US runs its own regime, and ships that discharge ballast there must normally use a USCG type-approved system. The EPA finalised new discharge standards under VIDA in October 2024, and the USCG’s implementing rules are due by October 2026. Until then, the 2013 Vessel General Permit and existing USCG rules apply.
For what inspectors already check on board, see BWTS inspections in 2026.
What goes wrong in service
Between September and November 2025, port state control regimes led by the Paris and Tokyo MoUs ran a concentrated inspection campaign on ballast water management. The MoUs’ own summary names proper operation of the system as the most common problem. RISK4SEA’s analysis of the campaign findings shows four areas produced 90% of the deficiencies:
- Ballast Water Record Book: 29% of deficiencies
- The ballast water management system itself: 27%
- Ballast Water Management Plan: 19%
- Crew training and familiarisation: 16%
Most findings (96%) weren’t detainable. But among the detainable ones, the system itself accounted for 46%. Paperwork gets you a remark. A system that doesn’t work gets you detained.
The biological failures have equally ordinary causes. Global TestNet’s data points to three: treated and untreated water mixing through valves in the wrong position, regrowth in tanks that aren’t cleaned often enough, and crews who don’t know their system well enough. None is a design fault.
Muddy ports and challenging water
Imagine a bulk carrier loading in a river port in the rainy season. The water is brown, the filter backflushes almost continuously, and the UV system cuts the flow to keep the dose valid. Ballasting slows down, and cargo operations slow down with it. Who decides what happens next: the master, the chief engineer or the terminal?
IMO now has guidance for exactly this case. The interim guidance on challenging water quality (MEPC.387(81)) treats bypassing the system as the last resort. If it can’t be avoided, the ship takes only the minimum ballast it needs for safety and records the operation in the record book under the codes set by BWM.2/Circ.80/Rev.1.
Sensors that drift
The controller is only as honest as its sensors. A fouled UVT sensor makes clear water look murky, so the system cuts flow for no reason. A drifting one can do the opposite. In the US, the 2013 Vessel General Permit requires calibration at least once a year, or more often if the maker says so.
Systems that sit idle
Some ships ballast rarely, and the system sits unused for weeks. Crews rotate too, so the person who knows the system best may be on leave on inspection day.
What to watch out for
- Run the system regularly, not only on the day of the inspection.
- Check valve positions at every operation to keep treated and untreated water apart.
- Keep sensor calibration in date and the certificates on board.
- Replace UV lamps and filter elements on the maker’s schedule, not when an alarm forces it.
- Make sure every new crew member is shown the system on board, not only on paper.
- Check that each record book entry matches the controller’s log.
Where PANASIA GloEn-Patrol fits

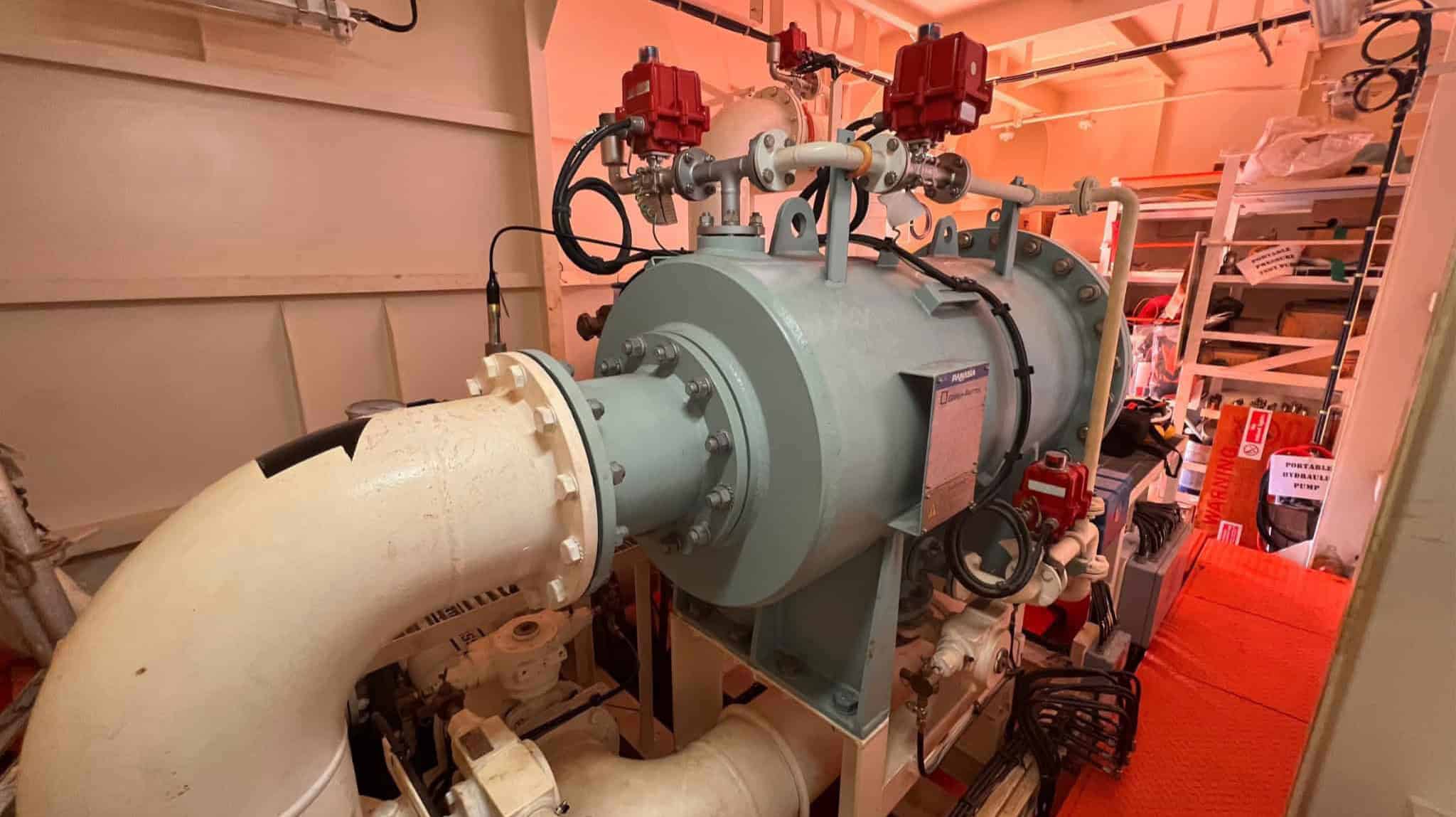

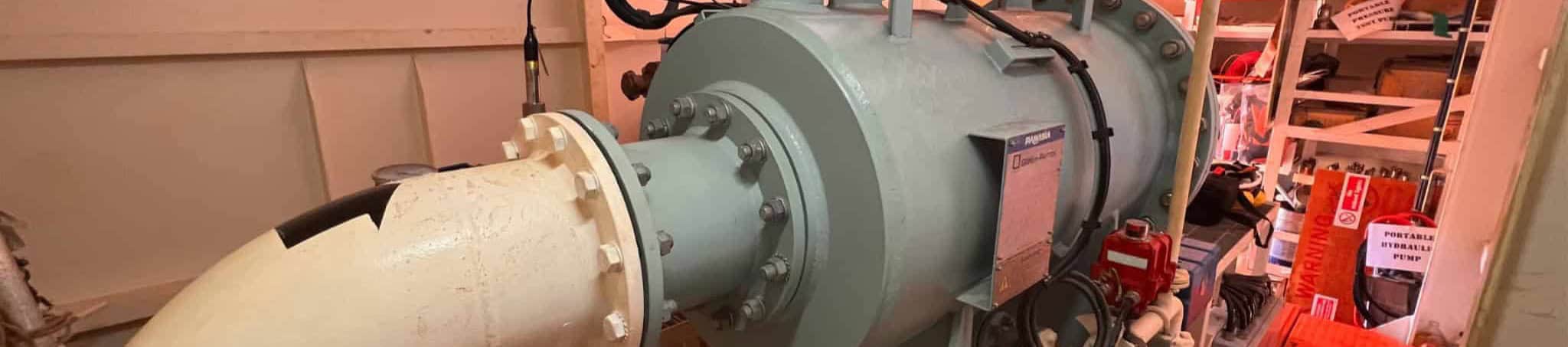

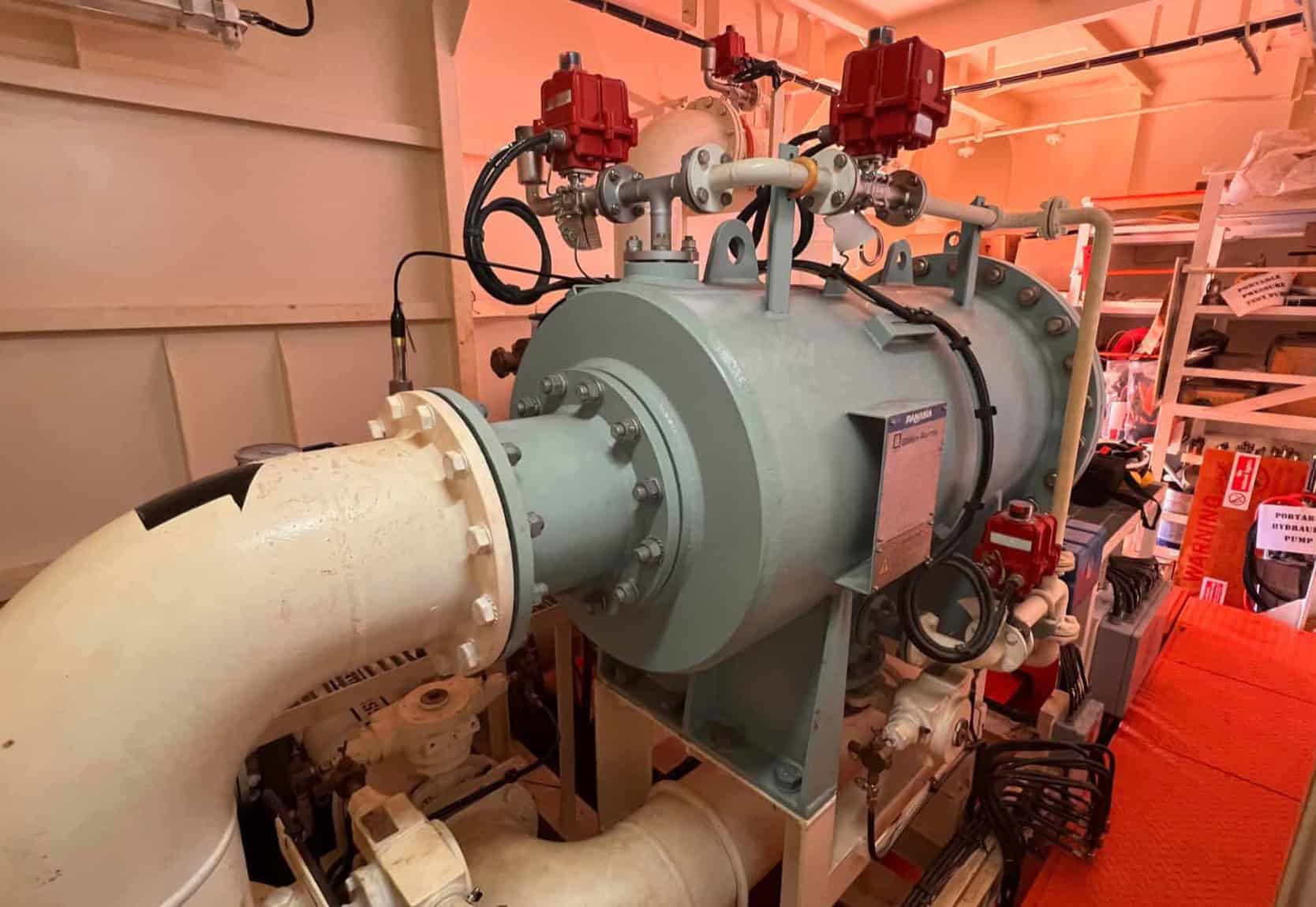

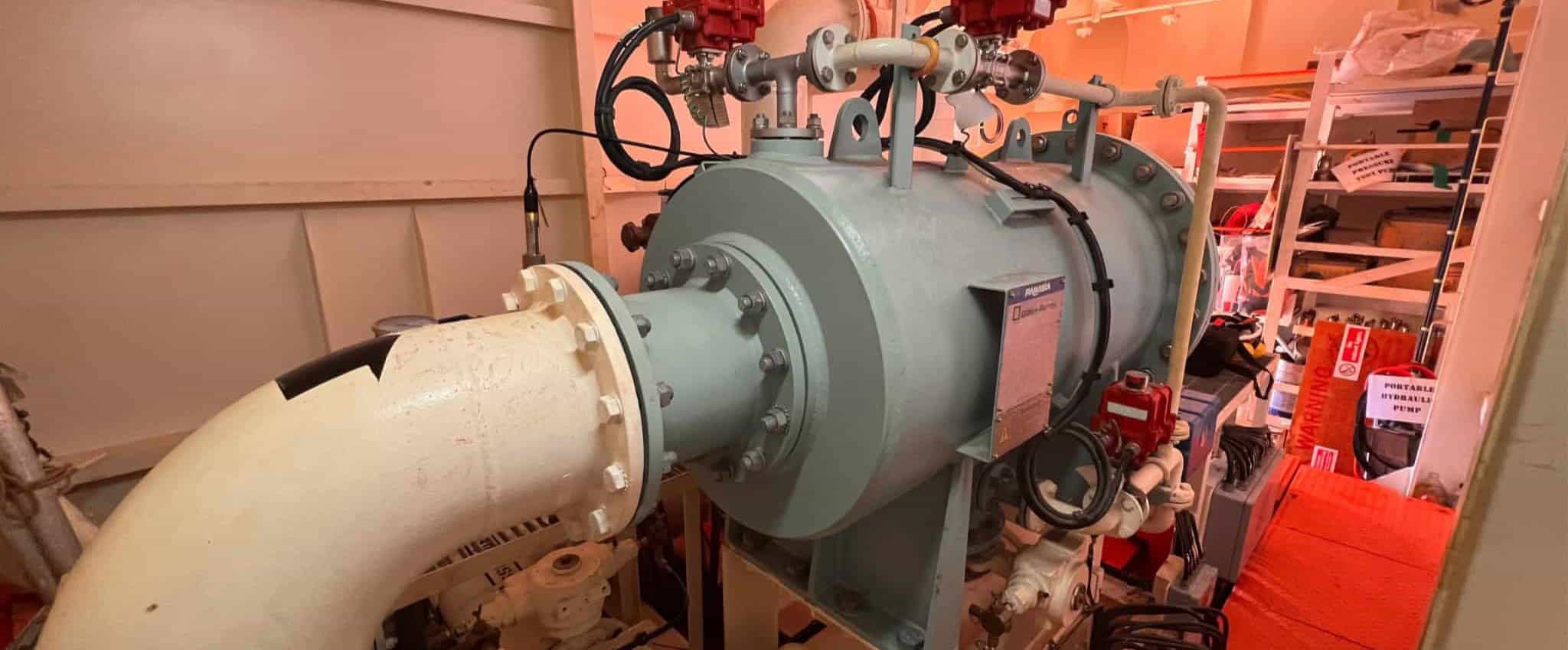

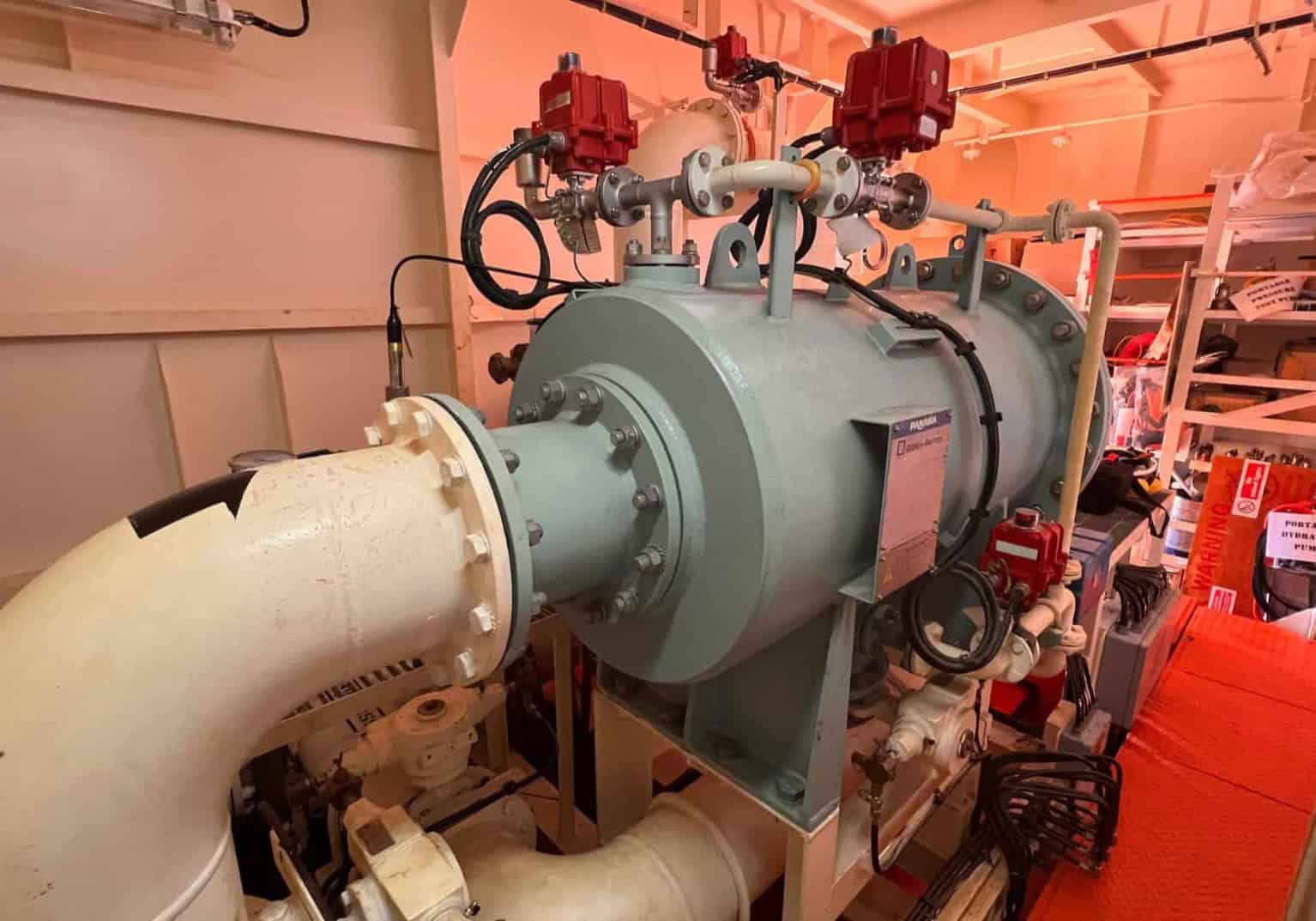

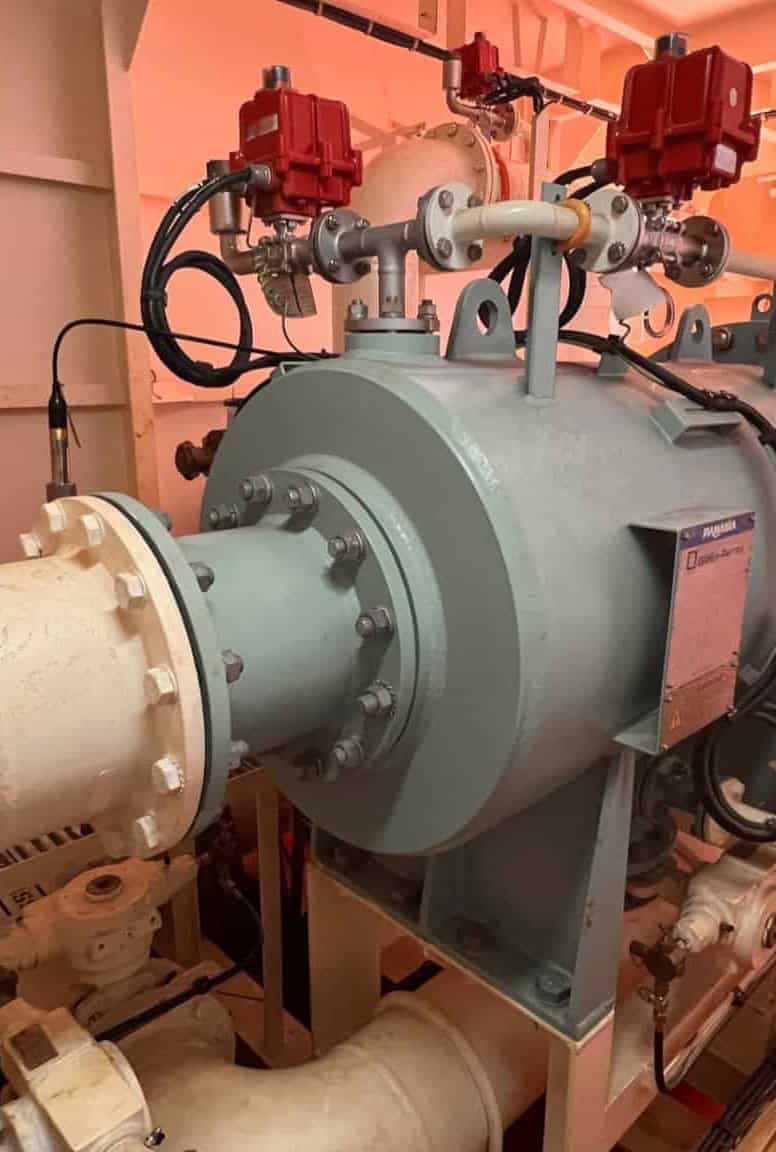

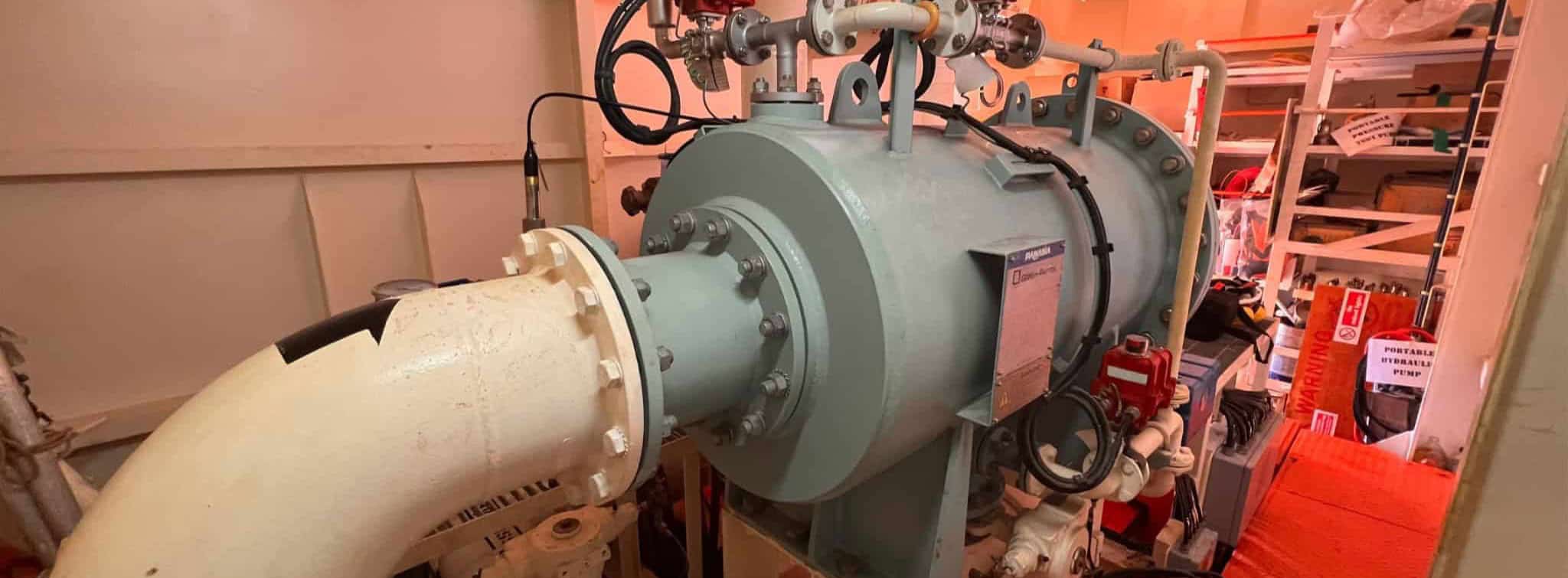

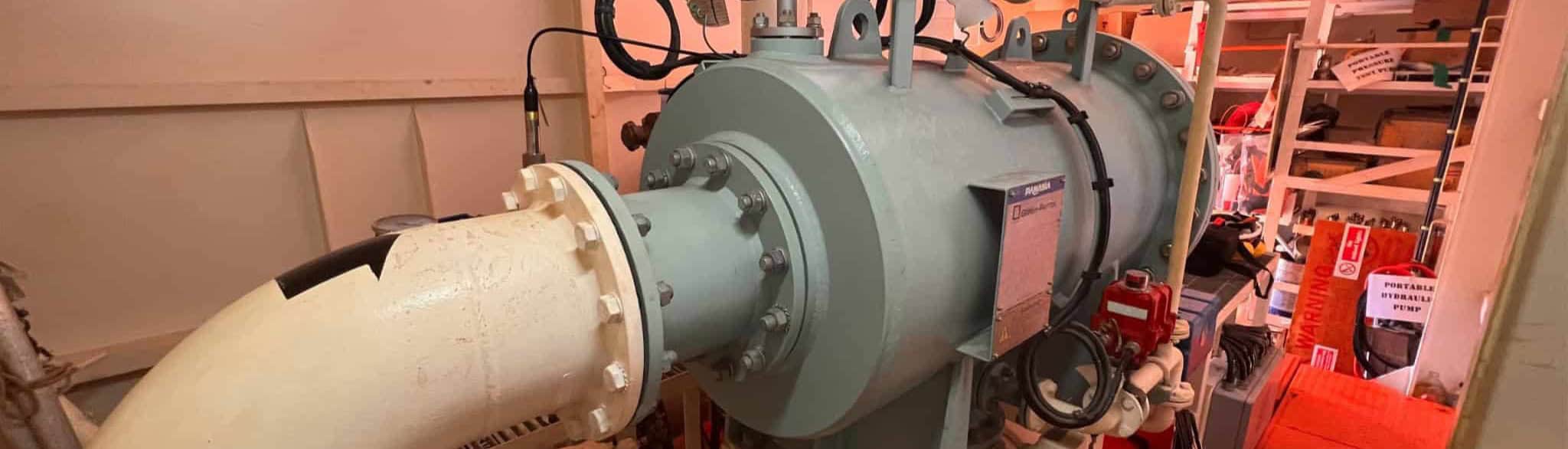

PANASIA’s GloEn-Patrol™ is a filtration and UV system, so everything in this guide about UV systems applies to it. It uses a 50 µm screen filter with differential-pressure backflushing and UV reactors with automatic cleaning wipers. It uses no active substances, so there’s no TRO to monitor and no neutralising agent to keep in stock. That’s one less thing for the chief engineer to count in the store room.
PANASIA’s filter units cover 50 to 3,000 m³/h, and the USCG approval covers systems up to 6,000 m³/h. The control panel is built on a Siemens PLC, logs operating data for 24 months and can connect to the ship’s alarm monitoring system. GloEn-Patrol is IMO type-approved and has held USCG type approval since December 2018. In US waters, its certificate sets a minimum holding time before discharge.
Nordast is an official PANASIA distributor and authorised service and spare parts centre. Our engineers are trained by PANASIA. We handle PANASIA BWTS supply, retrofit support, commissioning, calibration, maintenance and crew training, and supply genuine spares: UV lamps, filter elements and sensors. For the full PANASIA range, see Nordast x PANASIA Systems.
If you remember one thing
A ballast water treatment system is type-approved once, but it has to prove itself on every discharge. The systems that fail rarely fail by design. They fail through valves, sensors, records and training, and all four are in your hands.
Frequently asked questions
What does BWTS stand for?
BWTS stands for ballast water treatment system. It’s the equipment on board that removes or inactivates organisms in ballast water so the discharge meets the IMO D-2 standard.
Is a ballast water treatment system mandatory?
For ships under the BWM Convention, yes in practice. Since 8 September 2024 all of them must meet D-2, and an approved treatment system is the standard way to do it. US waters also require USCG type approval.
What is the difference between BWTS and BWMS?
BWMS is the IMO’s term and BWTS the more common one on board. Both describe the same equipment.
Does a UV ballast water treatment system work in fresh water?
Yes. UV depends on water clarity, not salinity, so it works in fresh, brackish and seawater. In low-clarity water, the system reduces flow to keep the dose valid.
How often do BWTS sensors need calibration?
Follow the maker’s schedule. In the US, the 2013 Vessel General Permit requires calibration at least once a year. Under the IMO’s BWMS Code, the system must allow its measuring components to be checked at renewal surveys.
Can a ship bypass its BWTS?
Only as a last resort, for example in challenging water quality. IMO’s interim guidance says to take only the minimum ballast needed for safety and record the bypass in the Ballast Water Record Book.
